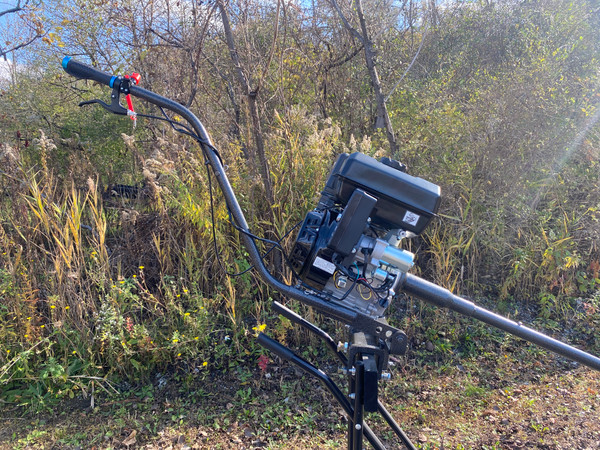

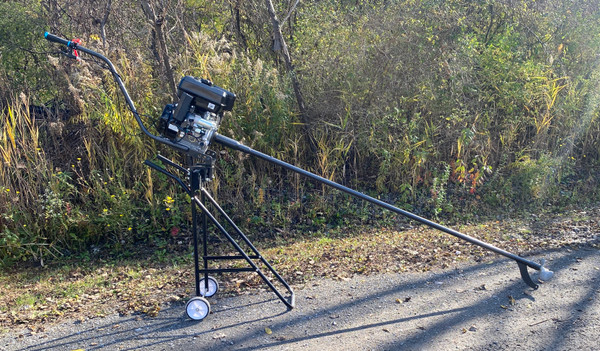

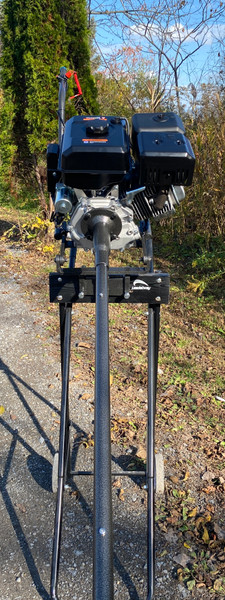

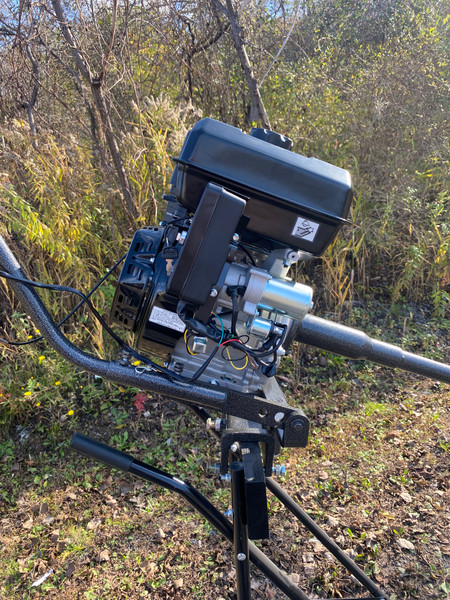

MUD-SKIPPER® DELUXE 8-16hp LONG TAIL MOTOR DRIVE SYSTEM

(No reviews yet) Write a Review
$495.00
SKU:
LTD2
Shipping:
Calculated at Checkout
  • Tach & Hour Meter
5 customers are viewing this product
MUD-SKIPPER® DELUXE 8-16hp LONG TAIL MOTOR DRIVE SYSTEM

MUD-SKIPPER® DELUXE 8-16hp LONG TAIL MOTOR DRIVE SYSTEM

$495.00

MUD-SKIPPER® DELUXE 8-16hp LONG TAIL MOTOR DRIVE SYSTEM

$495.00
  • Tach & Hour Meter

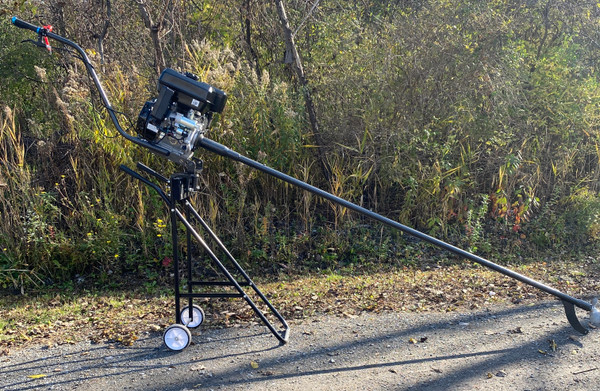

Introducing the Mud-Skipper 8-16hp Deluxe Long Tail Motor Drive System



The Kit Includes:

      • 100" Long Shaft and Polymer Sleeved Prop Bushing - with 4 Taiken Shaft bushings
      • PTO Housing powder coated BLACK with Hardened "T" Style Wing Bolts
      • The kit is designed for 8hp to 16hp motors by using a 1" Horizontal, keyed PTO shaft  (see list of some of the compatible motors below)

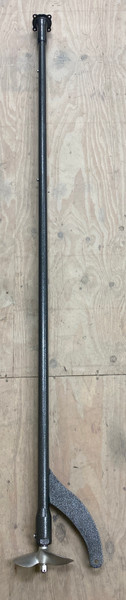

      • 100" Long Shaft with 3 Zerk Fittings &  Polymer Propeller Bushing - Powder Coated Black
      • PTO Housing with Hardened "T" Style Wing Bolts

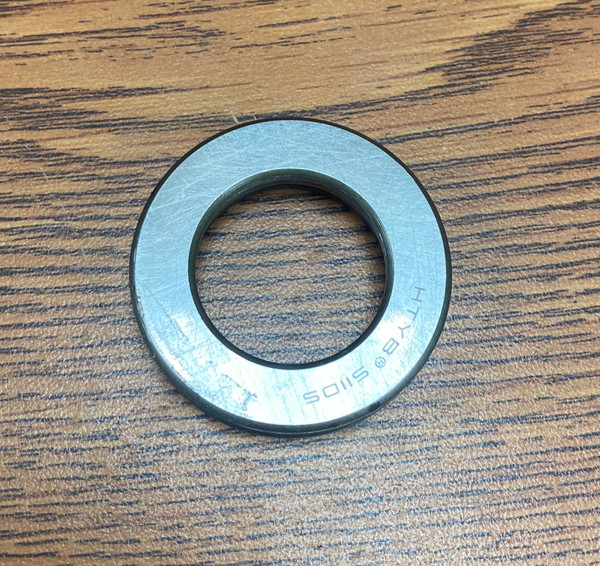

      • PTO Inner Shaft uses 2 Roller Bearings with Grade 5 Steel Bolts AND Key for Engine Mounting
      • Redesigned 4" Deep Transom Mount Clamp with Hardened Wing Bolts. Also, see our Transom Pad Kit!
      • Adjustable Engine Mount Base - 5 Settings for Engine Balance - Incl. Grade 5 Nuts & Bolts
      • Adjustable Tiller Handle - Swaps Easily from Left Hand to Right Hand Steering

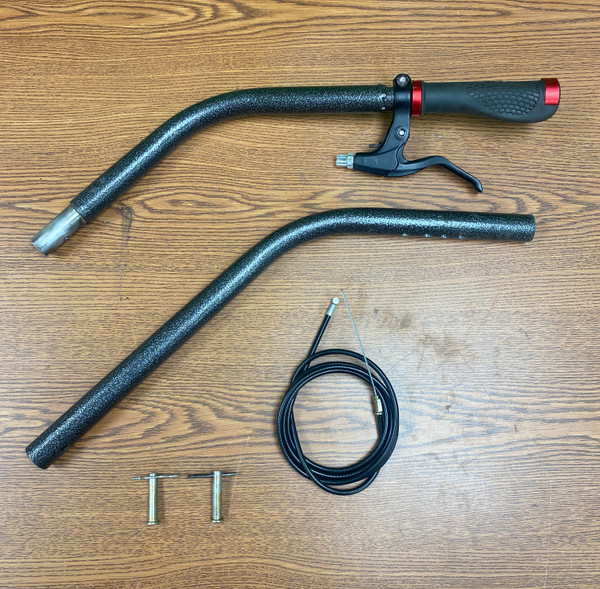

      • "Z" Style Tiller (Steering Handle) Includes Comfortable Rubber Grip
      • 2 Aluminum Propellers - 7.5" & 8.5" Diameter. Now powder coated for efficiency and longer life

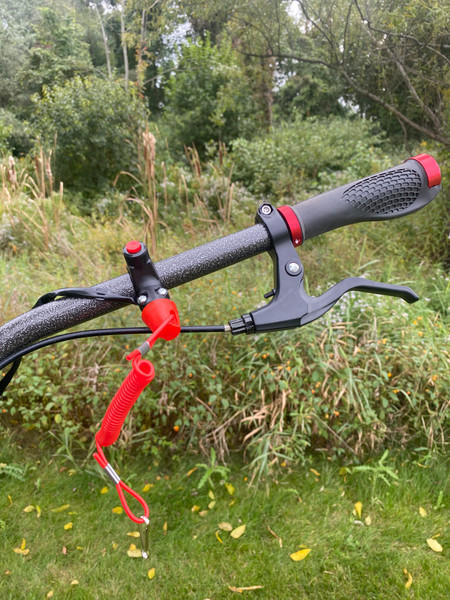

      • Cantilever Style Throttle Lever
      • Stainless Throttle Cable

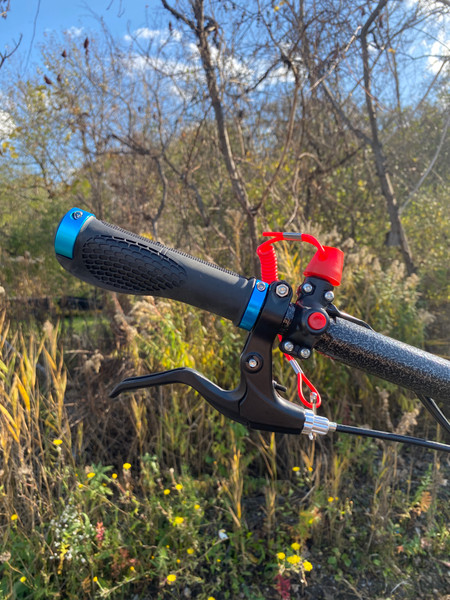

      • Push Button & Tethered Safety Kill Switch
      • Weighs 52lbs (without engine)
      • Please make sure you DOUBLE CHECK the diameter of the PTO on your motor before ordering!



Extras you do NOT get in the Standard Kit Include:



  • Exhaust System for Mud-Skipper 13/15hp, Honda GX390 and Predator 420cc Engines
  • 2 x Premium Marine Grease - 14oz tube
  • Spare Prop Nut
  • Spare Propeller Shaft Bushing
  • Double The Propellers - 2 - 7.5" and 2 - 8.5" propellers altogether

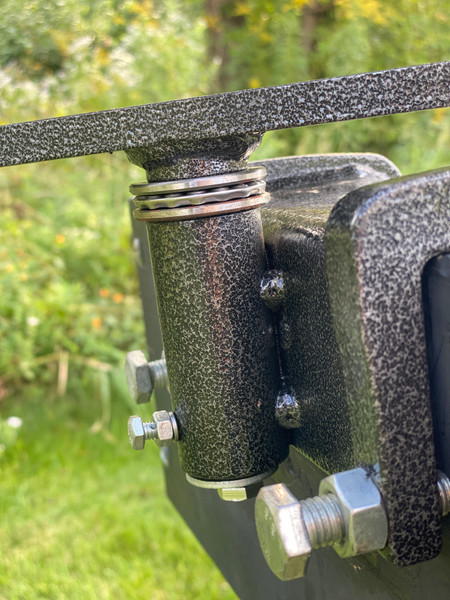

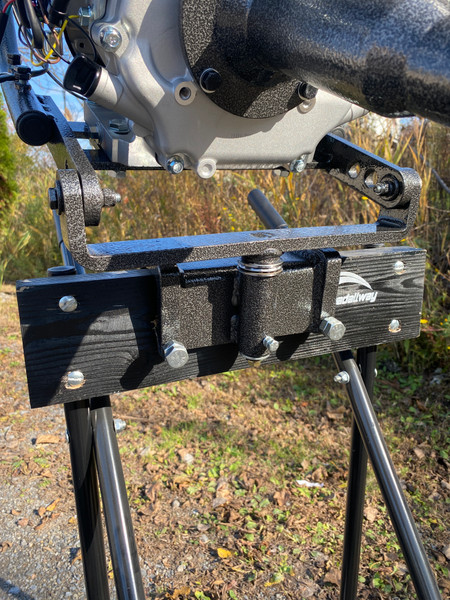

Transom Mount

Newly Designed Transom Mount - Reinforced "T" Style Wing Bolts & Grease Zerk Fitting. Transom Mount is 4" Deep (A Full Inch Deeper Than The Competition)

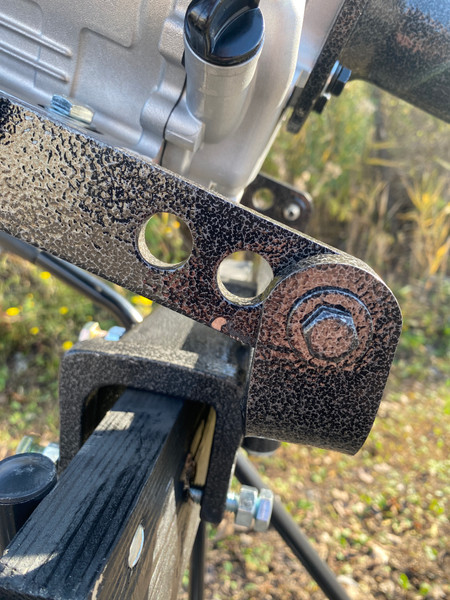

Engine Base

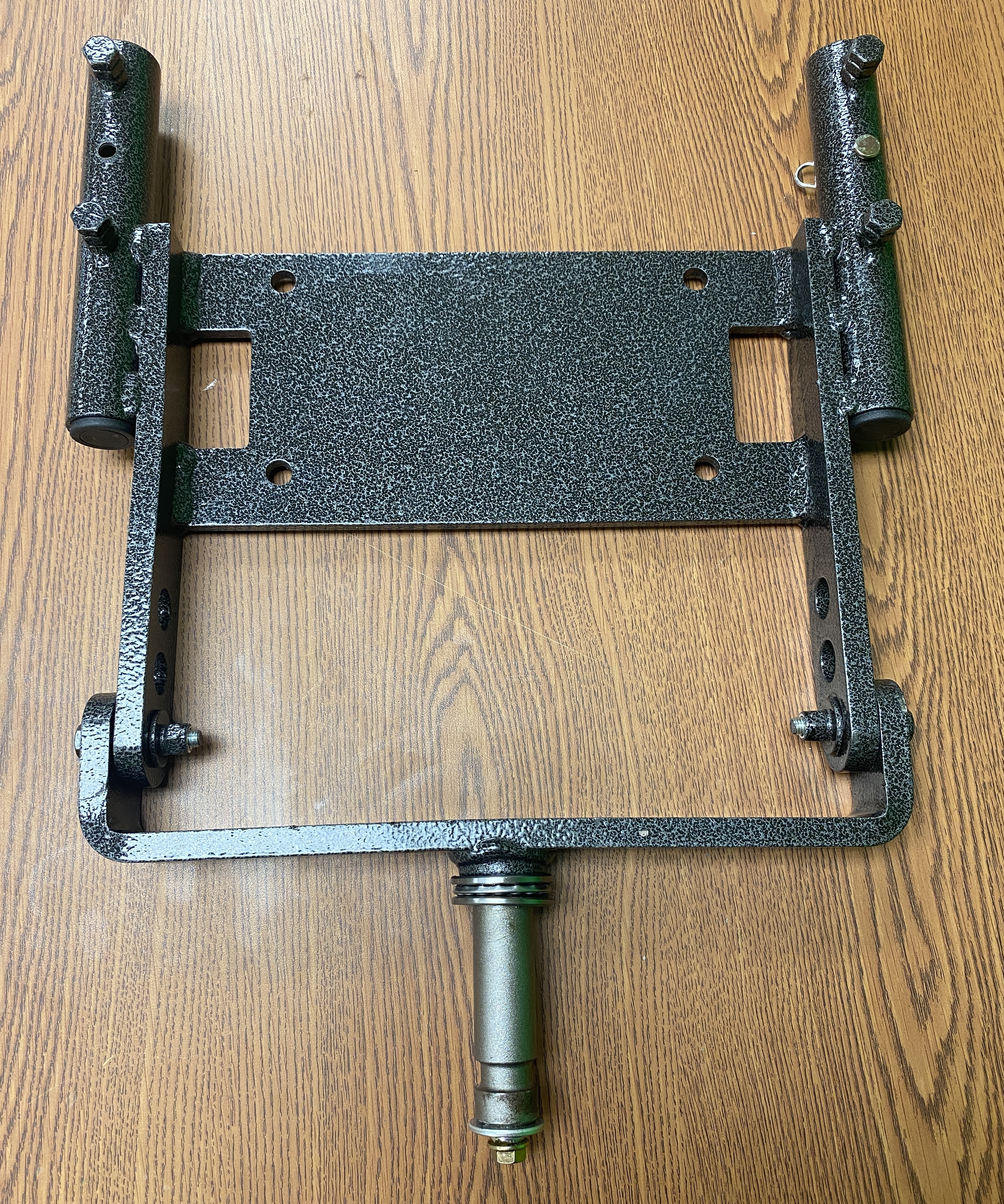

The Engine Mount

The four bolt holes fit most engine bases from 8hp to 16hp

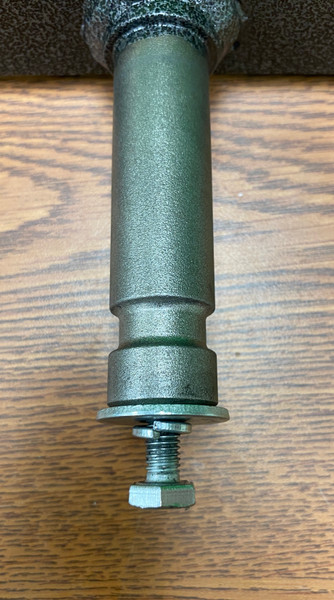

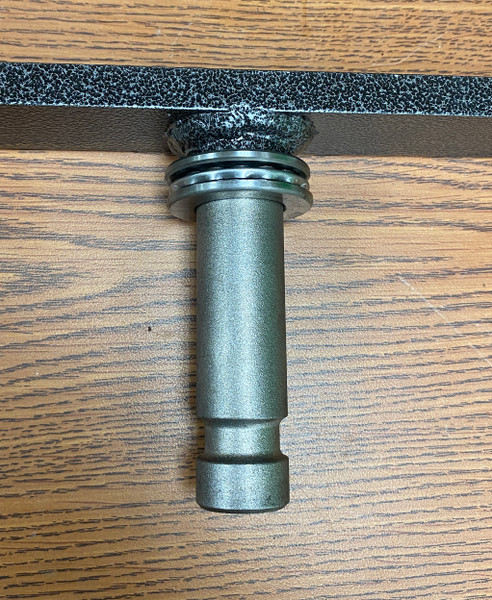

Note the post on the engine base. This fits into the tube on the transom mount, allowing the engine to swivel in all directions



PTO Shaft



The PTO Shaft Connector

The 1" diameter PTO shaft fits over the engine's crank and the long tail slots into it on the reverse end. Includes both screw and key mechanisms to lock into place.

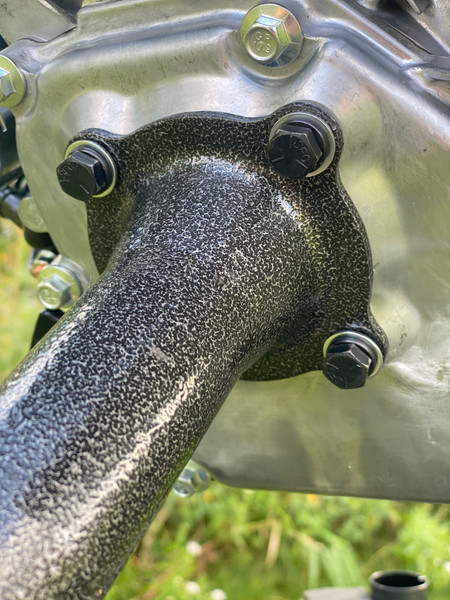

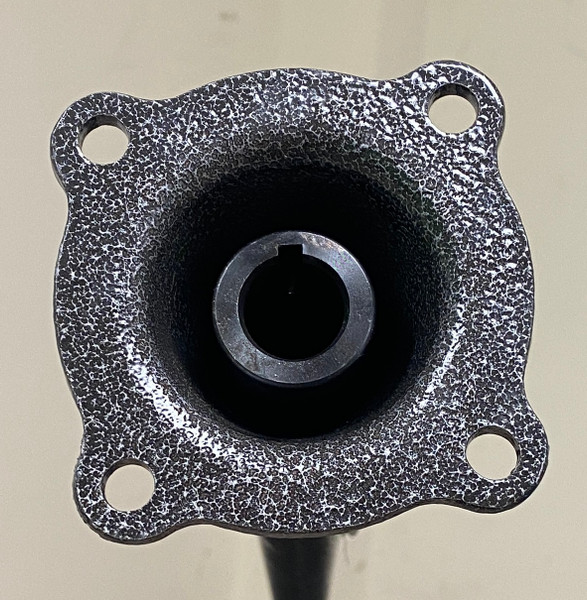

PTO Housing With Wing Bolts and Grease Cup

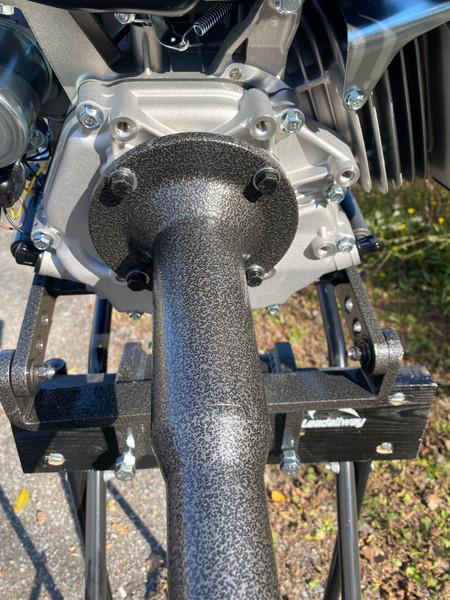

The Drive Housing

The housing is bolted over the engine's drive shaft

All engines have the four bolt hole configuration. This kit utilizes a 5" Bolt Circle

Please add the Mud-skipper 16hp Electric Start engine to your cart for an additional cost and we will ship everything you need to get right on the water! The kit also fits the following 1" Horizontal, Keyed Shaft Motors:

  • The Harbor Freight 420cc Horizontal Output Shaft
  • Honda G300-400, GX-240, 270, 340, 390
  • Honda 11hp GX340 models: GX340UT2QA2, GX340UT2QNE2
  • Honda 13hp GX390 models: GX390UT2QAA2, GX390UT1QNE2, GX390UT2QXC9 & DUCAR 13hp (which is a Honda GX390 clone)
  • CARROL STREAM COMPANY 11hp, 13hp, 16hp
  • MAXTOOLS 16HP Duromax



The Throttle Linkage Connections



Engine Requirements

  • 1" Keyed, Horizontal Drive Shaft with 5" Bolt Circle (Holes 3.5" x 3.5" in a square)
  • Engine Mounting Bolt Holes - 3.75" x 7.6875"



Kill Switch Installation
