MUD-SKIPPER® 8-16hp LONGTAIL MOTOR DRIVE SYSTEM

6 reviews Write a Review
$395.00
SKU:
LT2
Shipping:
Calculated at Checkout
  • Tach & Hour Meter
5 customers are viewing this product
MUD-SKIPPER® 8-16hp LONGTAIL MOTOR DRIVE SYSTEM

MUD-SKIPPER® 8-16hp LONGTAIL MOTOR DRIVE SYSTEM

$395.00

MUD-SKIPPER® 8-16hp LONGTAIL MOTOR DRIVE SYSTEM

$395.00
  • Tach & Hour Meter







The Mud-Skipper 8-16HP Long Tail Motor Drive System








The Kit Includes:

  • 1 Piece - 100" Long Solid Steel Driveshaft with Sealed Roller Bearings and Oil Seal
  • Entire mud motor powder coated HAMMER TONE grey
  • The kit is designed for 8hp to 16hp motors by using a 1" PTO shaft (see list of some of the compatible motors below)
  • PTO Housing Features Hardened Steel Coupler and pre-installed key
  • PTO Housing, PTO Shaft and Long Tail Shaft are one piece - eliminating multiple assembly steps
  • Redesigned Transom Mount with Hardened Bolts and Cups - Locks at 5 different points
  • Engine Mount Base - with Grade 5 Bolts and nuts
  • Transom Pivot Bearing
  • Multiple Grease Points
  • "Z" Style Adjustable Tiller Handle - Right and Left Hand Steering Option
  • 8.5" Diameter Stainless Propeller
  • Stainless Steel Throttle Cable & Cantilevered "Brake" Style Aluminum Throttle Control Lever
  • Push Button & Tethered Safety Kill Switch
  • Overall Length 147"
  • Tiller Length 42" - (Tiller is 2 piece)
  • Weighs 62lbs (Before adding engine weight)
  • No Welding or Fabrication - requires only basic hand tools!
  • This long tail kit is designed for sneak boats, canoes, layout boats, jon boats etc.



Newly Designed Transom Mount - Grade 8 Hex Bolts & Cups

Transom Mount is 4" Deep and 2.75" Wide

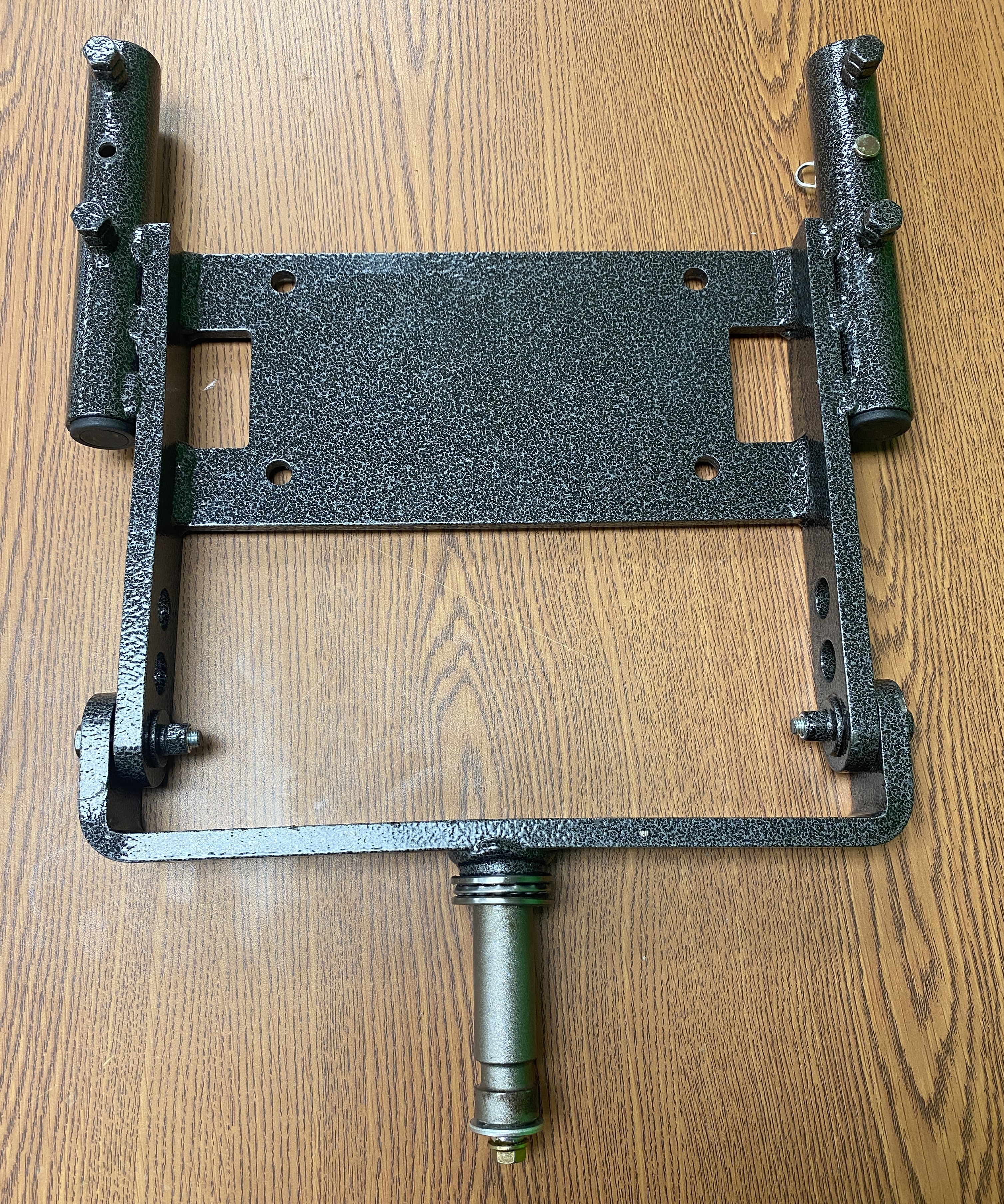

The Engine Mount





The four bolt holes fit most engine bases up to 16hp

The tiller handle attaches to either side. Multiple engine balance settings.



The PTO Shaft Connector



The PTO Housing fits over the engines crankshaft. PTO housing, PTO shaft and long tail are all connected, eliminating multiple assembly steps!



The Drive Housing

The housing is bolted over the engine's drive shaft (crankshaft)

All 8hp to 16hp engines have the four bolt hole configuration. This kit utilizes a 5" Bolt Circle

Please add either the Mud-Skipper 10hp, 13.5hp or 15hp electric start engine to your cart for an additional cost and we will ship everything you need to get right on the water! Here are a few other engines the kit fits:

  • The Harbor Freight 420cc Horizontal Output Shaft
  • Honda G300-400, GX-240, 270, 340, 390
  • Honda 11hp GX340 models: GX340UT2QA2, GX340UT2QNE2
  • Honda 13hp GX390 models: GX390UT2QAA2, GX390UT1QNE2, GX390UT2QXC9 & DUCAR 13hp (which is a Honda GX390 clone)
  • CARROL STREAM COMPANY 11hp, 13hp, 16hp
  • MAXTOOLS 16HP Duromax (may not come with all throttle cable clips)



The Throttle Linkage Connections



Engine Requirements

  • 1" Keyed, Horizontal Drive Shaft with 5" Bolt Circle (Holes 3.5" x 3.5" in a square)
  • Engine Mounting Bolt Holes - 3.75" x 7.6875"



Kill Switch Installation
