MUD-SKIPPER® DELUXE 5-7hp LONG TAIL MOTOR DRIVE SYSTEM

1 reviews Write a Review
$395.00
SKU:
LTD1
  • 3/4" PTO
  • 5/8" PTO
  • Tach & Hour Meter
  • Prop Aluminum 6.25"
  • 6" Aluminum prop
  • Longtail Propeller 7" Diameter
  • Long Tail Throttle Lever
Out of stock
5 customers are viewing this product

MUD-SKIPPER® DELUXE 5-7hp LONG TAIL MOTOR DRIVE SYSTEM

$395.00

Out of stock

MUD-SKIPPER® DELUXE 5-7hp LONG TAIL MOTOR DRIVE SYSTEM

$395.00
  • 3/4" PTO
  • 5/8" PTO
  • Tach & Hour Meter
  • Prop Aluminum 6.25"
  • 6" Aluminum prop
  • Longtail Propeller 7" Diameter
  • Long Tail Throttle Lever

NEW FEATURES - RIGHT HAND AND LEFT HAND STEERING OPTION

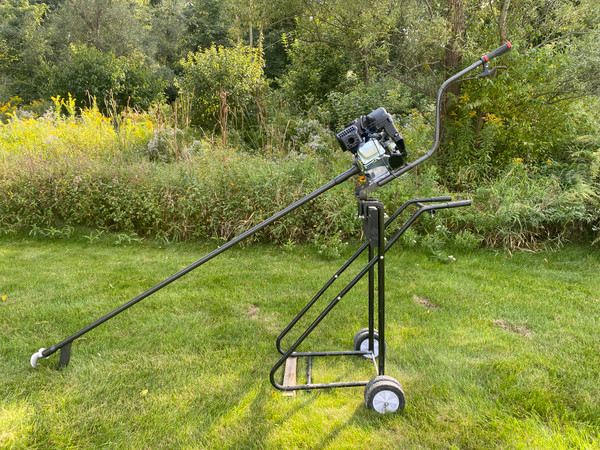

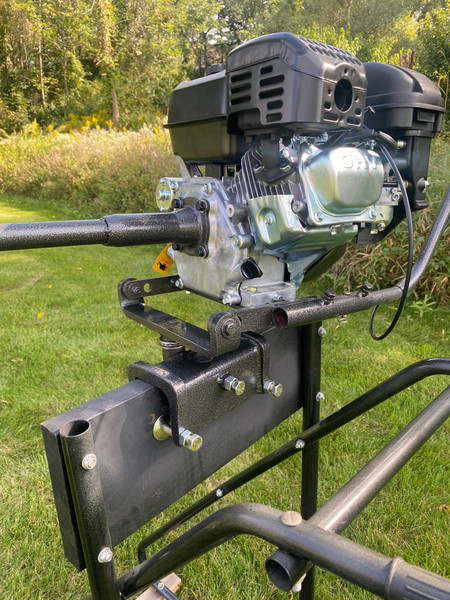

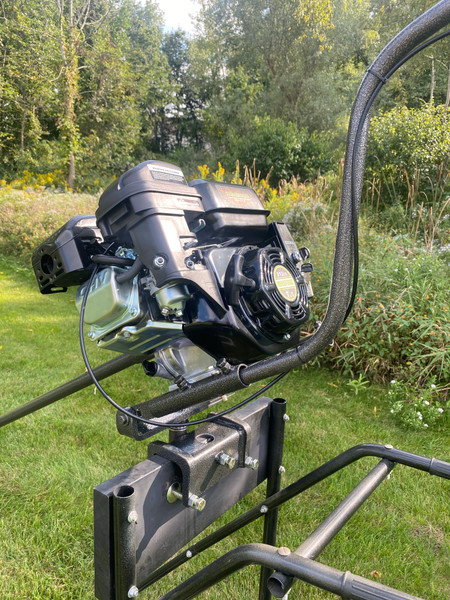

DELUXE 5-7HP LONGTAIL MOTOR DRIVE SYSTEM

The Deluxe Kit Includes:

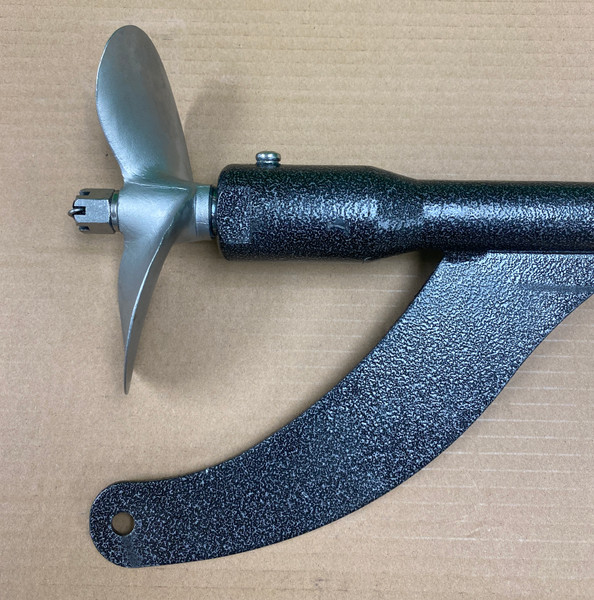

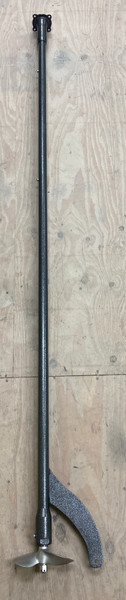

  • 85" Long Shaft and Nylon Greaseless Prop Bushing - with 4 Taiken Shaft bushings
  • PTO Housing now powder coated BLACK with Hardened "T" Style Wing Bolts
  • The kit is designed for 2.5hp to 5hp motors by using a 5/8" PTO shaft and 5-7hp motors by using a 3/4" PTO shaft (see list of compatible motors below)
  • PTO Inner Shaft with Grade 5 Steel Bolts AND Key for Engine Mounting
  • Redesigned 4" Deep Transom Mount Clamp with hardened "T" Style Wing Bolts. Also, see our Transom Pad Kit!
  • Engine Mount Base with Grade 5 Nuts & Bolts - NOW has right/left hand option for tiller handle!

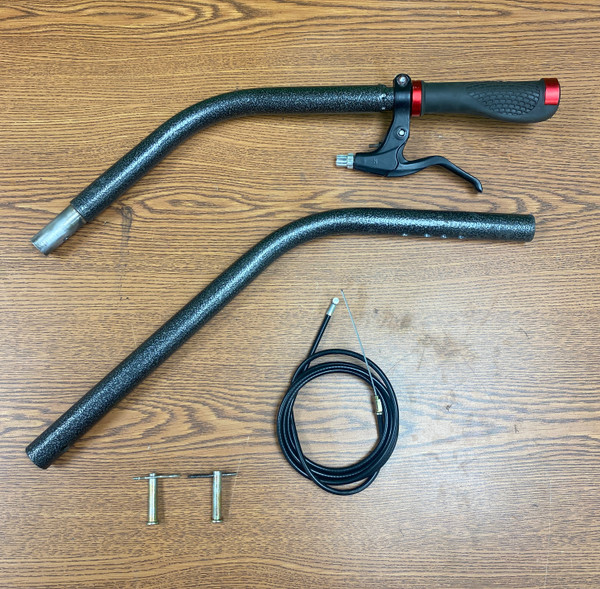

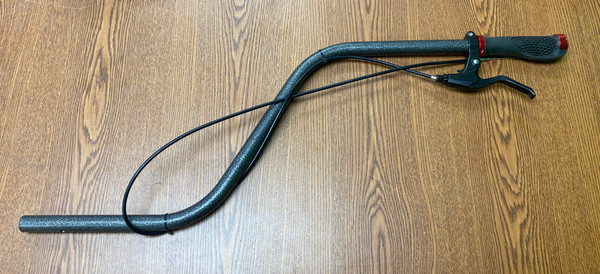

  • Adjustable Tiller Handle - now powder coated BLACK
  • 2 Propellers - 6.25" & 6.5" Diameter.

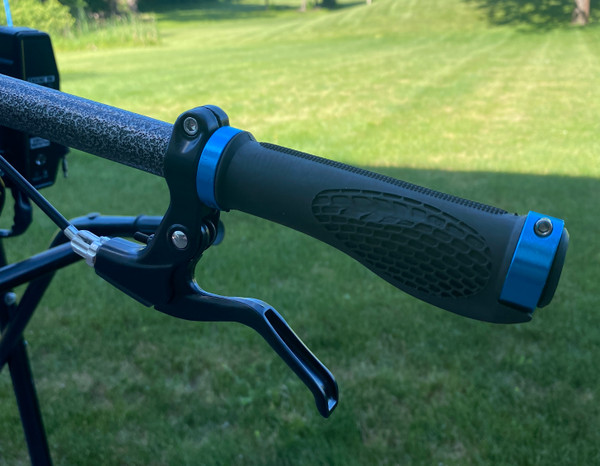

  • Throttle Cable & Lever
  • Push Button & Tethered Safety Kill Switch
  • Please make sure you DOUBLE CHECK the diameter of the PTO on your motor before ordering!

Extras you do NOT get in the Standard Kit Include:

  • 2 x HDPE 12" x 12" x 1/2" TRANSOM PADS
  • Exhaust System for Mud-Skipper 7hp, Honda GX160 and Predator 212cc Engines
  • 2 x Premium Marine Grease - 14oz tube
  • HEX PROP NUT FOR LONGTAIL MUD MOTOR SHAFT
  • Spare DELRIN Propeller Shaft Bushing

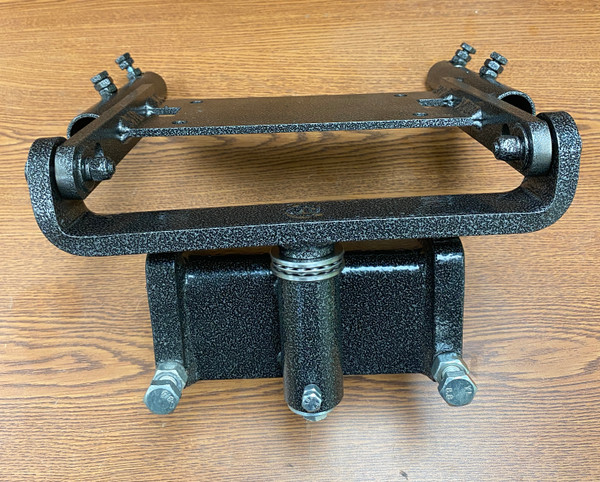

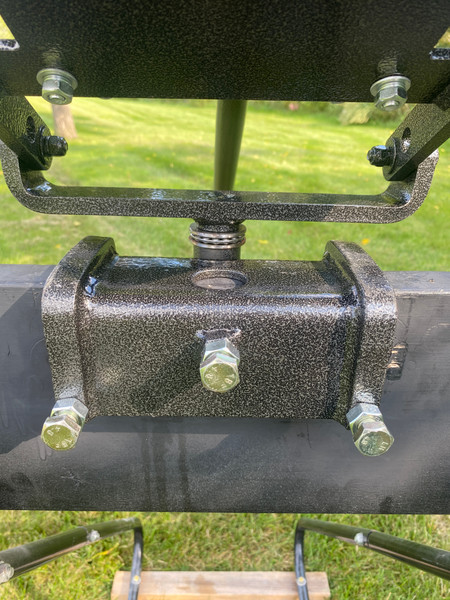

Transom Mount

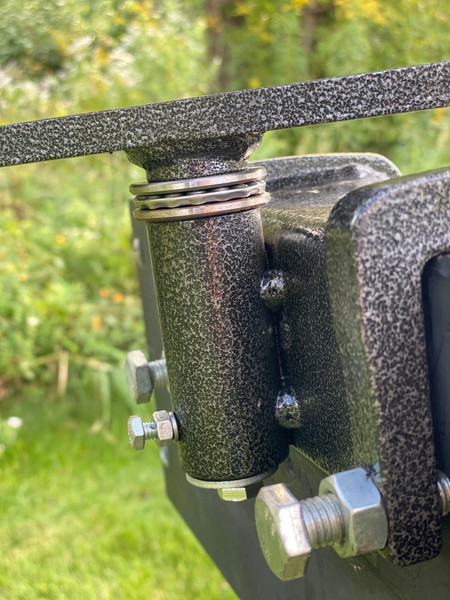

Newly Designed Transom Mount - Reinforced "T" Style Wing Bolts & Grease Zerk Fitting. Transom Mount is 4" Deep (A Full Inch Deeper Than The Competition)

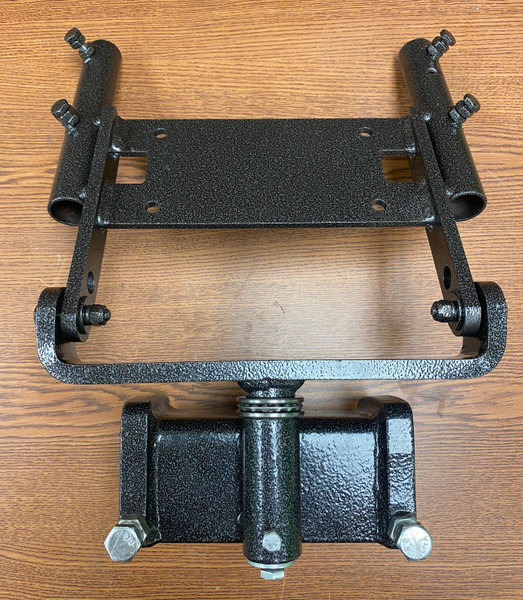

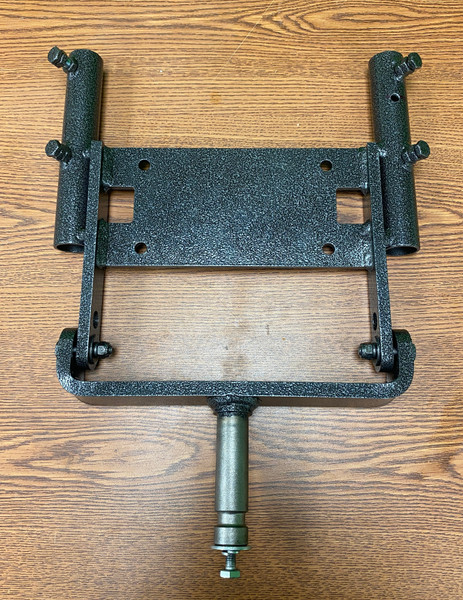

Engine Base

The Engine Mount

The four bolt holes fit most engine bases up to 7hp

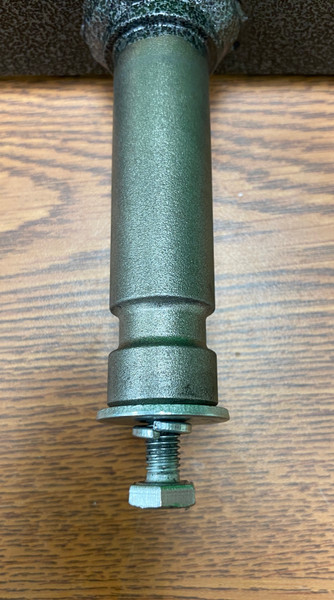

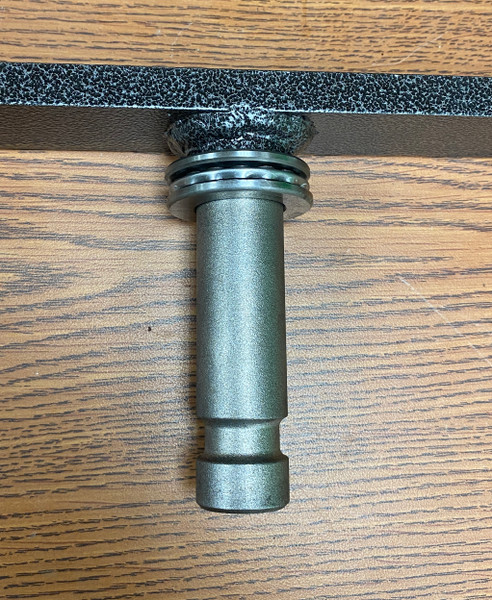

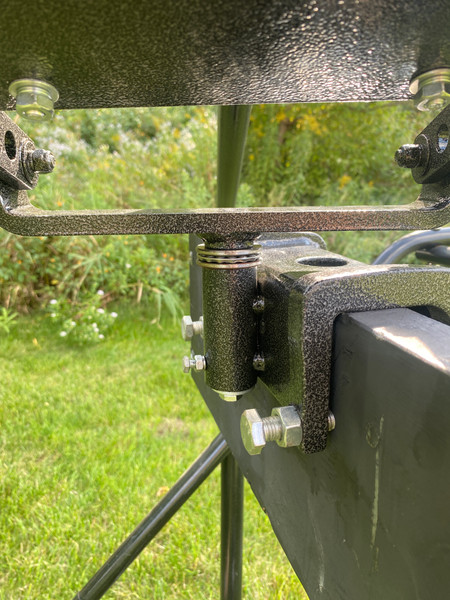

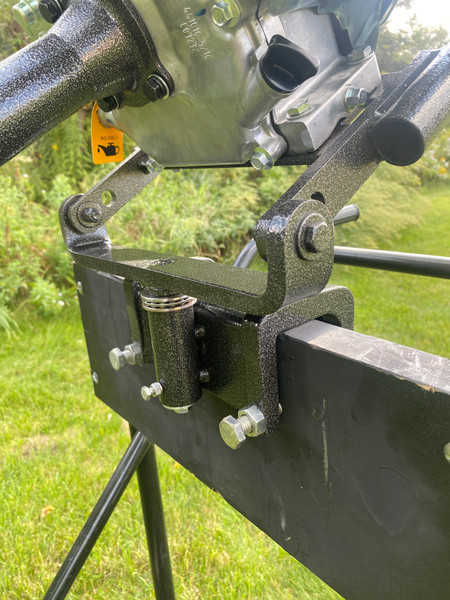

Note the post on the engine base. This fits into the tube on the transom mount, allowing the engine to swivel in all directions

Mud-Skipper Transom

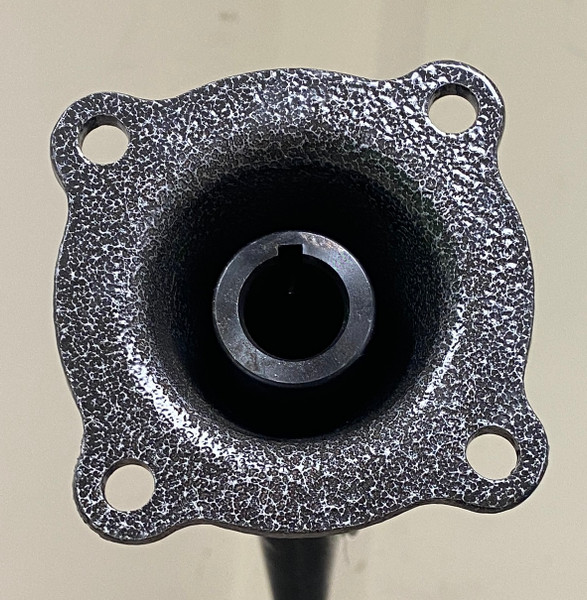

The PTO Shaft Connector

The PTO fits over the Engine Shaft and the Drive Shaft slots into it. Includes both screw and key mechanisms to lock into place.

PTO Housing With Wing Bolts and Grease Cup

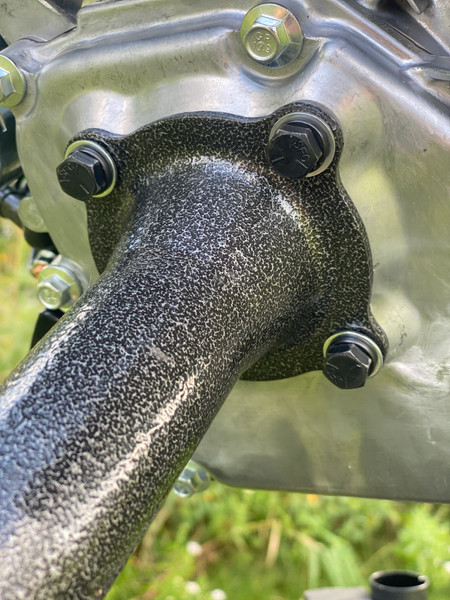

The Drive Housing

The housing is bolted over the engine's drive shaft

All engines have the four bolt hole configuration. This kit utilizes a 3-5/8" Bolt Circle (3.625")

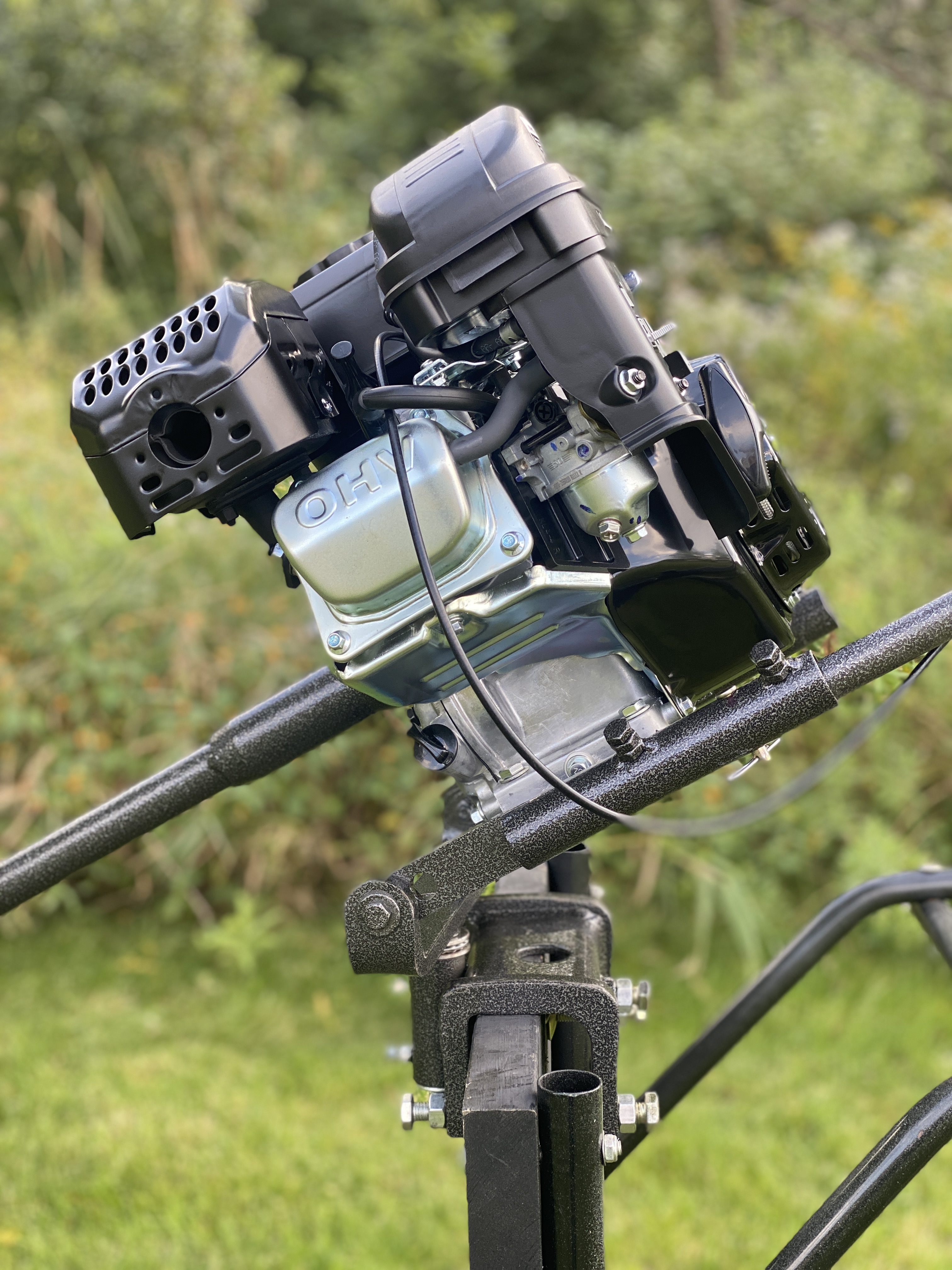

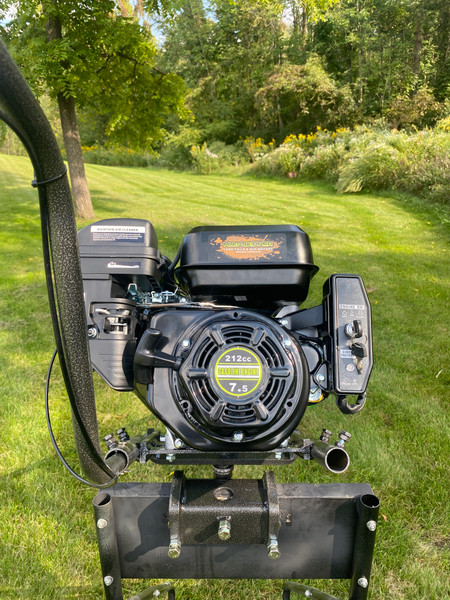

Please add the Mud-skipper 7hp Electric Start engine to your cart for an additional cost and we will ship everything you need to get right on the water! The kit also fits the following 3/4" Horizontal, Keyed Shaft Motors:

  • Harbor Freight 6.5hp - 212cc Predator
  • Honda 5.5hp & 6.5hp - GX160 & GX200 models
  • Home Depot 6.5hp Lifan - 196cc
  • Carroll Stream 5.5hp & 6.5hp
  • Briggs 208cc 3/4" Horizontal shaft model
  • Duromax 7hp
  • Kohler 6.5hp
  • Tecumseh 5.5hp OH195XA-71234
  • Many more.......

The Throttle Linkage Connections

Engine Requirements

  • 3/4" Keyed, Horizontal Drive Shaft with 3-5/8" Bolt Circle (Holes 2.48" x 2.48" in a square)
  • Engine Mounting Bolt Holes - 3.125" x 6.375"
  • Engine Shaft - 3/4" or 5/8" Diameter Straight Keyed Shaft - Please select which size PTO at checkout!

Kill Switch Installation

What our customers are saying:

Clint F -- "I want to say I'm glad I didn't believe the hype and go with the s*s company although I'm from Florida, now in Texas.

I purchased your longtail 7 hp kit and although I customized it it's awesome.

No one has ever seen the like round here. I'm a commercial fisherman and I use this motor to collect and sell marsh baits.

Thank you mudskipper for saving me $$$."

Jeff C - "Just purchased your long tail mud motor and love it. I will be ordering the z bent steering arm for it soon. I stand while operating the boat and it will make the motor complete. Thanks again guys good job"

Limited Two Year Warranty:

If, within TWO years from the date of purchase your longtail mud-motor kit fails due to a defect in materials, or workmanship, we will repair or replace, at our discretion, any part that we determine to be defective in materials or workmanship, free of charge. If the product fails, the buyer must contact Mud-Skipper for an RMA prior to returning the product. Failed parts must be returned for inspection. Shipping expenses for any item submitted for repair or replacement under this warranty are the responsibility of the owner of the item. Mud-Skipper will provide return shipping of the repaired or replaced part to the customer via UPS, USPS parcel post, or other freight carrier of our choice (additional charges for expedited return shipping to the buyer is the responsibility of the buyer). This warranty does not cover damage due to impact, normal wear, excessive wear to the shaft or shaft bushings due to lack of lubrication, neglect, corrosion, lack of maintenance, modification to the product, or misuse. The customer will be responsible for the shipping costs of any item returned to them that is not covered under warranty. This warranty is provided to the original purchaser. Proof of original purchase is required on all warranties, exchanges, and returns. Electrical parts ARE covered under this warranty. Propellers ARE NOT covered under this warranty.

Shipping

We ship using FedEx. Some heavy items may be shipped using LTL Freight. Shipping quotes can be viewed on our web site, after you add an item to your shopping cart.

We ship all products from our Lyons, NY location.

Returns Policy

Returns are accepted on new, unused, unassembled products in their original packaging only, within 30 days of their receipt.

Please contact us to receive an RMA number. Return shipping charges are the responsibility of the buyer. Returns may be subject to a 15% restocking fee.
