MUD-SKIPPER® 16-23hp LONGTAIL MOTOR DRIVE SYSTEM

1 reviews Write a Review
$549.00
SKU:
LT3
Shipping:
Calculated at Checkout
  • Tach & Hour Meter
5 customers are viewing this product
MUD-SKIPPER® 16-23hp LONGTAIL MOTOR DRIVE SYSTEM

MUD-SKIPPER® 16-23hp LONGTAIL MOTOR DRIVE SYSTEM

$549.00

MUD-SKIPPER® 16-23hp LONGTAIL MOTOR DRIVE SYSTEM

$549.00
  • Tach & Hour Meter

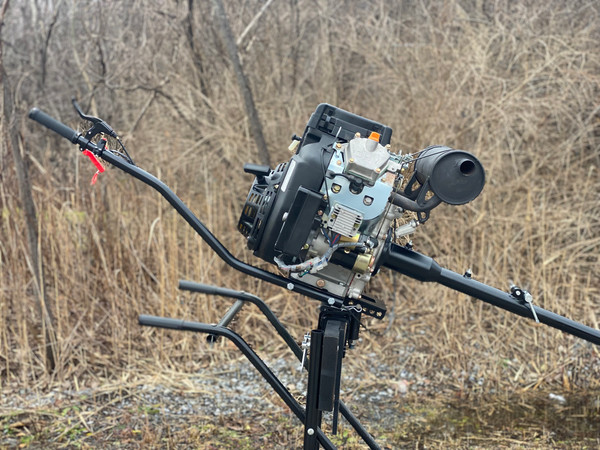

The Mud-Skipper® 16-23hp Long Tail Motor Drive System



The Kit Includes:

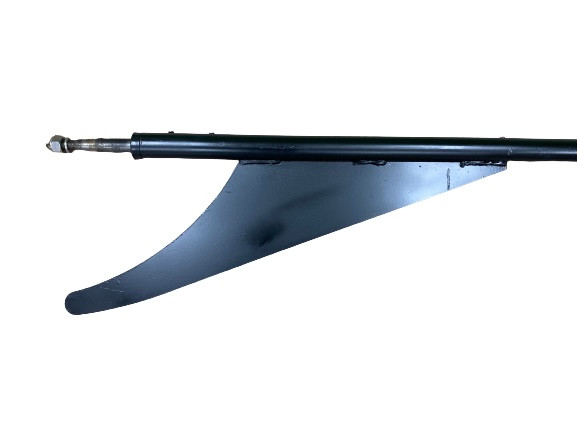

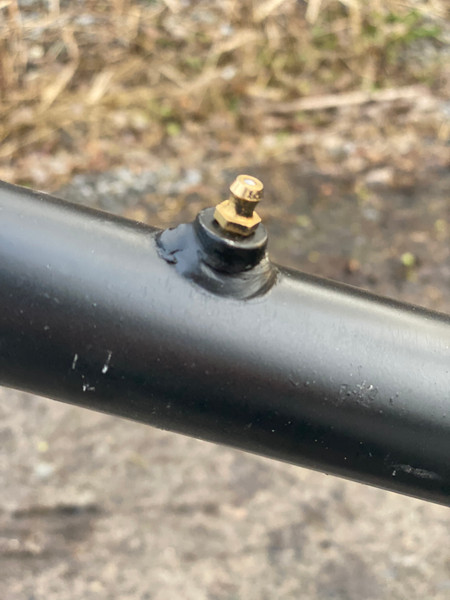

  • 110" Long Shaft with 3 Zerk Fittings &  Polymer Propeller Bushing - Powder Coated Black
  • PTO Housing with Hardened "T" Style Wing Bolts
  • PTO Inner Shaft uses 2 Roller Bearings with Grade 5 Steel Bolts AND Key for Engine Mounting
  • Redesigned 4" Deep Transom Mount Clamp with Hardened Wing Bolts. Also, see our Transom Pad Kit!
  • Adjustable Engine Mount Base - 5 Settings for Engine Balance - Incl. Grade 5 Nuts & Bolts
  • Adjustable Tiller Handle - Swaps Easily from Left Hand to Right Hand Steering
  • "Z" Style Tiller (Steering Handle) Includes Comfortable Rubber Grip

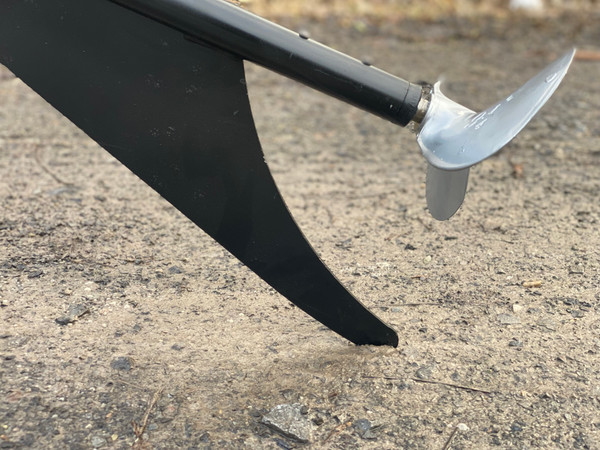

  • 2 Aluminum Propellers - 8.5" & 9.25" Diameter. Now powder coated for efficiency and longer life
  • Cantilever Style Throttle Lever
  • Stainless Throttle Cable
  • Push Button & Tethered Safety Kill Switch
  • Weighs 58lbs (without engine)



DUE TO THE LENGTH OF THE LONG TAIL SHAFT NEEDED, (110") THIS KIT ONLY SHIPS FOR A FLAT RATE OF $150.00. FOR A SHIPPING QUOTE TO CANADA, PLEASE CALL US AT (315)946-9400

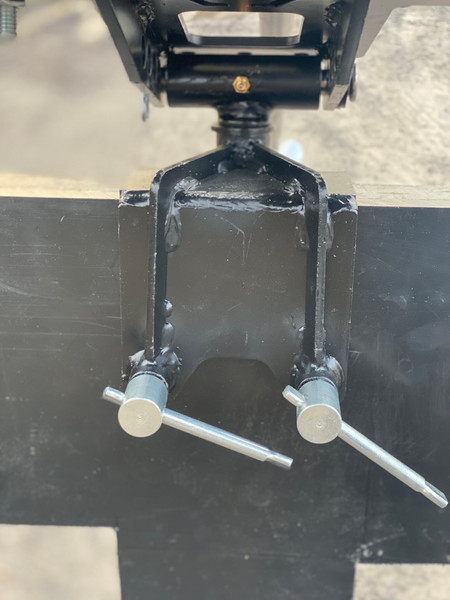

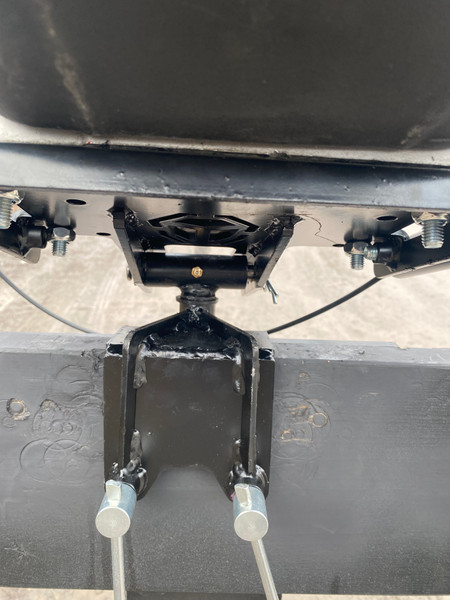

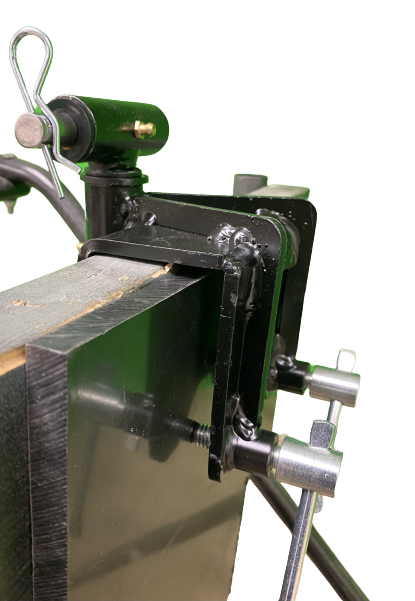

Transom Mount

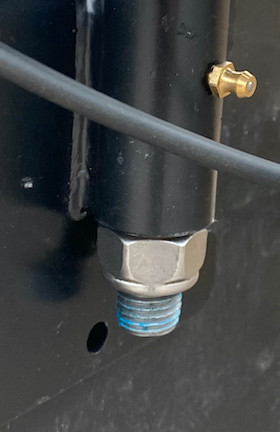

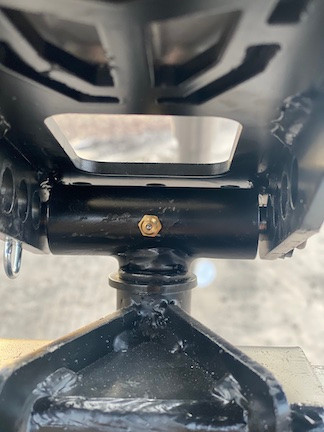

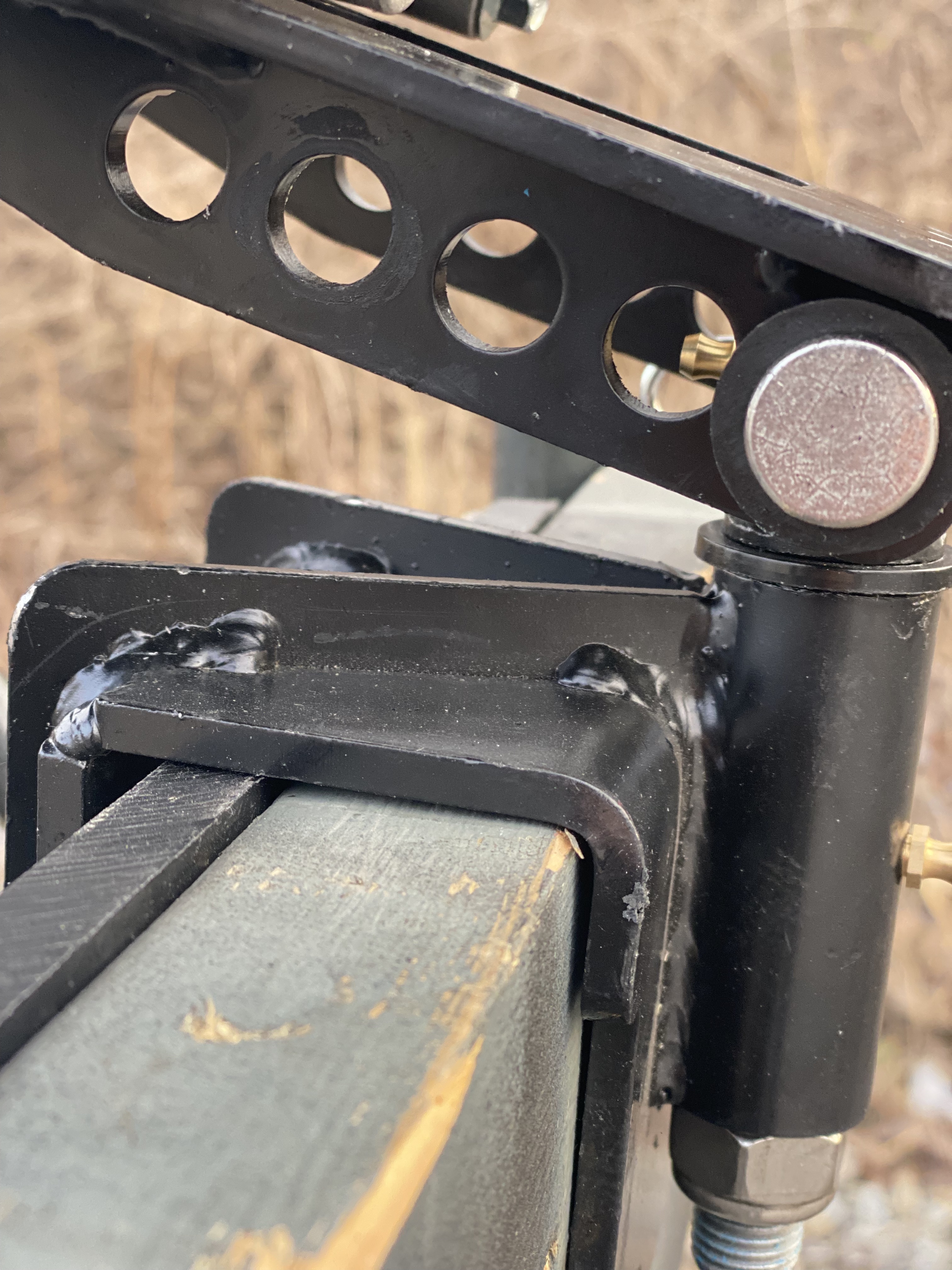

Newly Designed Transom Mount - Reinforced "T" Style Wing Bolts & Grease Zerk Fitting. Transom Mount is 4" Deep

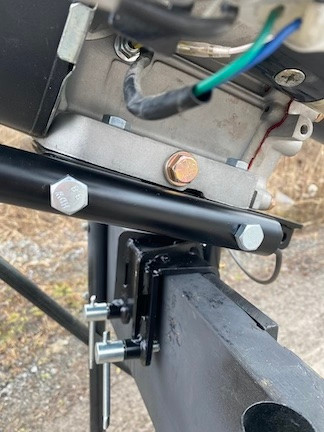

Engine Base

The Engine Mount

The four bolt holes fit most engine bases from 18hp to 23hp

The tiller handle can be fixed to either side to allow for left hand and right hand steering

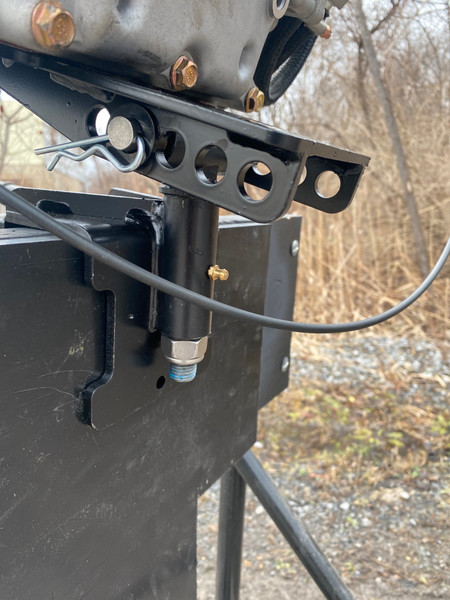

The engine base has FIVE different settings for engine balance and propeller control

The long tail swivels 360 degrees and can rest inside your boat during transport

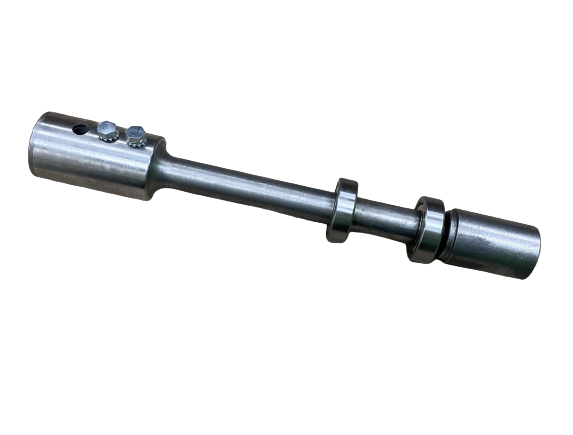

PTO ShaftThe PTO Shaft Connector

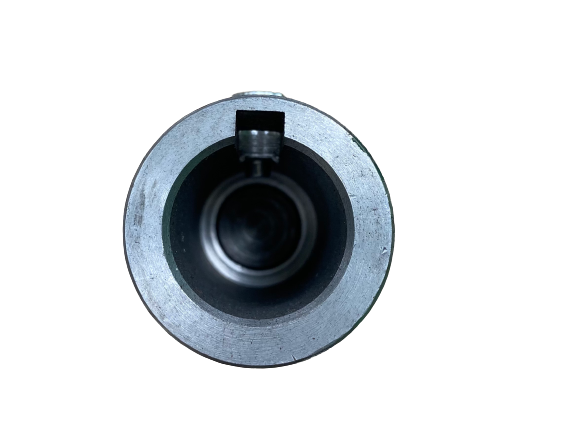

The 1" diameter PTO shaft fits over the engine's crank and the long tail slots into it on the reverse end. Includes both screw and key mechanisms to lock into place. The PTO shaft uses 2 roller bearings.

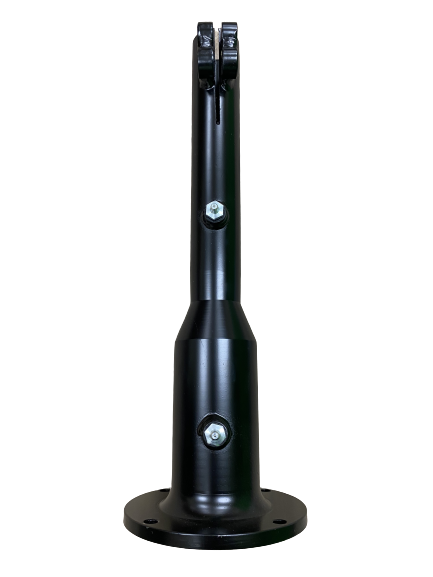

PTO Housing With Wing Bolts and Grease Cup

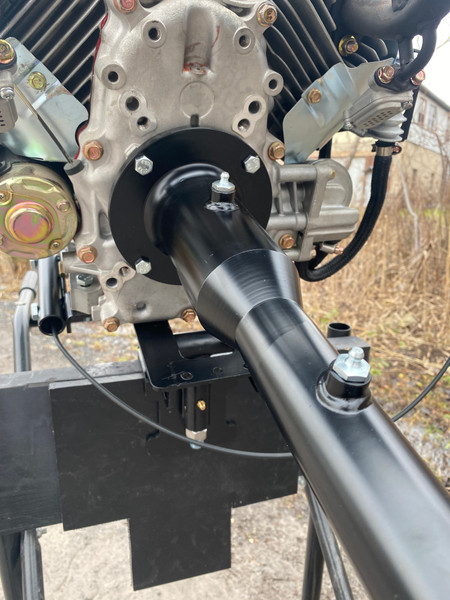

The Drive Housing

The housing is bolted over the engine's drive shaft. Easily apply grease through the two zerk fittings installed.

All engines have the four bolt hole configuration. This kit utilizes a 5" Bolt Circle

Please add one of the electric start engines to your cart above for an additional cost and we will ship everything you need to get right on the water! The kit also fits the following 1" Horizontal, Keyed Shaft Motors:

  • The Harbor Freight 420cc Horizontal Output Shaft
  • The Harbor Freight 22hp 670cc V Twin Engine
  • Honda G300-400, GX-240, 270, 340, 390
  • Honda 11hp GX340 models: GX340UT2QA2, GX340UT2QNE2
  • Honda 13hp GX390 models: GX390UT2QAA2, GX390UT1QNE2, GX390UT2QXC9 & DUCAR 13hp (which is a Honda GX390 clone)
  • CARROL STREAM COMPANY 11hp, 13hp, 16hp
  • MAXTOOLS 16HP Duromax
  •  Vanguard 16hp
  • Vanguard 18hp
  •  Vanguard 23hp



The Throttle Linkage Connections



Engine Requirements

  • 1" Keyed, Horizontal Drive Shaft with 5" Bolt Circle (Holes 3.5" x 3.5" in a square)
  • Engine Mounting Bolt Holes - 3.75" x 7.6875"



Kill Switch Installation
